Product Summary

The MMBTH10LT1G is a VHF/UHF Transistor.

Parametrics

MMBTH10LT1G absolute maximum ratings: (1)Collector-Emitter Voltage VCEO: 25 Vdc; (2)Collector-Base Voltage VCBO: 30 Vdc; (3)Emitter-Base Voltage VEBO: 3.0 Vdc.

Features

MMBTH10LT1G features: (1)These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant.

Diagrams

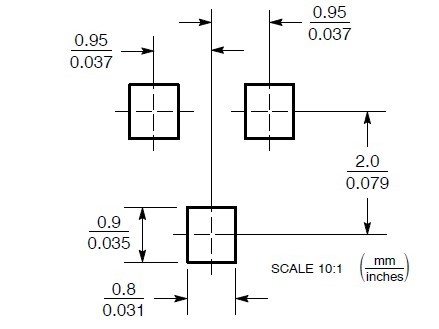

MMBTH10LT1G diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MMBTH10LT1G
MMBTH10LT1G
ON Semiconductor
Transistors Bipolar (BJT) 25V VHF Mixer NPN
Data Sheet
0-1: $0.18
1-25: $0.13
25-100: $0.06
100-500: $0.05
