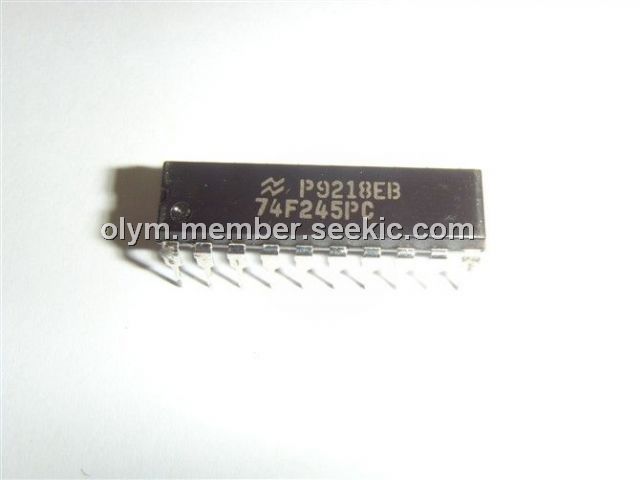

Product Summary
The 74F245PC is an octal bidirectional transceiver. It contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus-oriented applications. Current sinking capability is 24 mA at the A Ports and 64 mA at the B Ports. The Transmit/Receive (T/R) input determines the direction of data flow through the 74F245PC. Transmit (active HIGH) enables data from A Ports to B Ports; Receive(active LOW) enables data from B Ports to A Ports. The Output Enable input, when HIGH, disables both A and B Ports by placing them in a High Z condition.
Parametrics
74F245PC absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature under Bias: -55℃ to +125℃; (3)Junction Temperature under Bias: -55℃ to +150℃; (4)VCC Pin Potential to Ground Pin: -0.5V to +7.0V; (5)Input Voltage (Note 2): -0.5V to +7.0V; (6)Input Current (Note 2): -30 mA to +5.0 mA; (7)Voltage Applied to Output in HIGH State (with VCC = 0V); (8)Standard Output: -0.5V to VCC; (9)3-STATE Output: -0.5V to +5.5V; (10)Current Applied to Output in LOW State (Max): twice the rated IOL (mA); (11)ESD Last Passing Voltage (Min): 4000V.
Features
74F245PC features: (1)Non-inverting buffers; (2)Bidirectional data path; (3)A outputs sink 24 mA; (4)B outputs sink 64 mA.

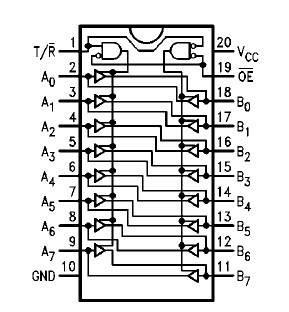

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
74F245PC |
Fairchild Semiconductor |
Bus Transceivers Octal Bidir Trans |
Data Sheet |
Negotiable |
|
|||||
74F245PC_Q |
Fairchild Semiconductor |
Bus Transceivers Octal Bidir Trans |
Data Sheet |
Negotiable |
|
