LM1086

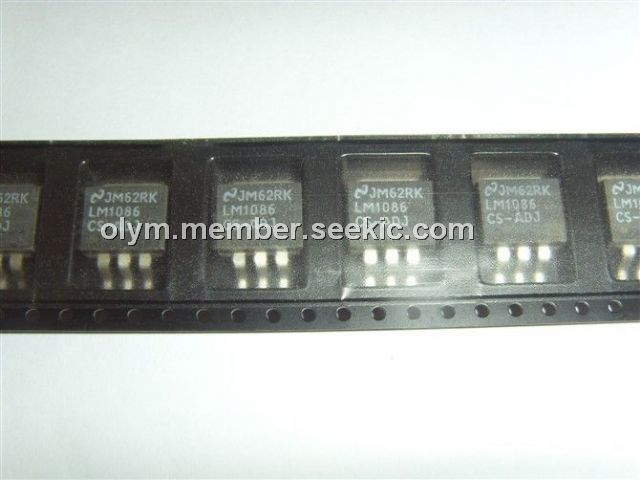

1.5A, Low Dropout Positive, Regulator, TO-263, Output Current 1.5A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: LM1086

Brand:: National Semiconductor - NS | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jacker's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-20

From Other Seller

Part Number:LM1086
US $0.50 - 1.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

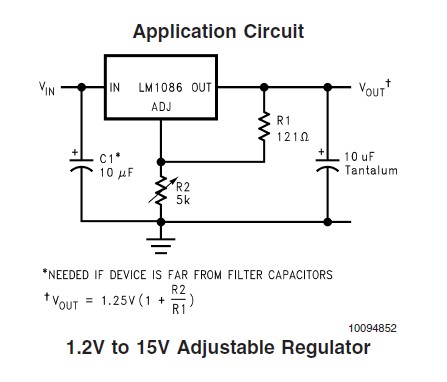

The LM1086 is a series of low dropout positive voltage regulator with a maximum dropout of 1.5V at 1.5A of load current. It has the same pin-out as National Semiconductor industry standard LM317. The LM1086 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in six fixed voltages: 1.8V, 2.5V, 2.85V, 3.3V, 3.45V and 5.0V. The fixed versions integrate the adjust resistor. The LM1086 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. The LM1086 series is available in TO-220, TO-263, and LLP packages. Refer to the LM1084 for the 5A version, and the LM1085 for the 3A version.

Parametrics

LM1086 absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Junction Temperature (TJ): 150℃; (3)Storage Temperature Range: -65℃ to 150℃; (4)Lead Temperature: 260℃, to 10 sec; (5)ESD Tolerance: 2000V.

Features

LM1086 features: (1)Available 1.8V, 2.5V, 2.85V, 3.3V, 3.45V, 5V and Adjustable Versions; (2)Current Limiting and Thermal Protection; (3)Output Current 1.5A; (4)Line Regulation 0.015% (typical); (5)Load Regulation 0.1% (typical).
