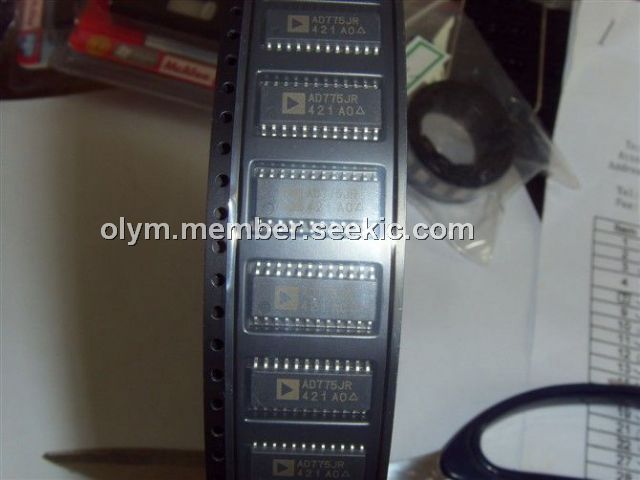

Product Summary

The AD775JR is a CMOS, low power, 8-bit, 20 MSPS sampling analog-to-digital converter (ADC). The AD775JR features a builtin sampling function and on-chip reference bias resistors to provide a complete 8-bit ADC solution. The AD775JR utilizes a pipelined/ping pong two-step flash architecture to provide high sampling rates (up to 35 MHz) while maintaining very low power consumption (60 mW).

Parametrics

AD775JR absolute maximum ratings: (1)Supply Voltage (AVDD, DVDD): 7 V; (2)Supply Difference (AVDD–DVDD): 0 V; (3)Ground Difference (AVSS–DVSS): 0 V; (4)Reference Voltage (VRT, VRB): VDD to VSS; (5)Analog Input Voltage (VIN) : VDD to VSS; (6)Digital Input Voltage (CLK): VDD to VSS; (7)Digital Output Voltage (VOH, VOL) : VDD to VSS; (8)Storage Temperature: –55℃ to +150℃.

Features

AD775JR features: (1)CMOS 8-Bit 20 MSPS Sampling A/D Converter; (2)Low Power Dissipation: 60 mW; (3)+5 V Single Supply Operation; (4)Differential Nonlinearity: 0.3 LSB; (5)Differential Gain: 1%; (6)Differential Phase: 0.5 Degrees; (7)Three-State Outputs; (8)On-Chip Reference Bias Resistors; (9)Adjustable Reference Input; (10)Video Industry Standard Pinout; (11)Small Packages: 24-Pin 300 Mil SOIC Surface Mount; 24-Pin 400 Mil Plastic DIP.

Diagrams

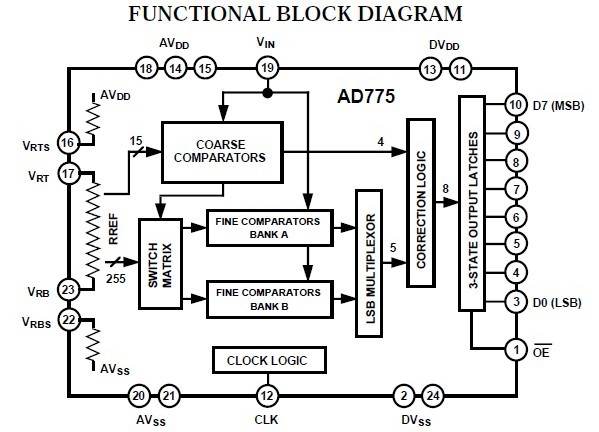

AD775JR BLOCK DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD775JRZ
AD775JRZ

Other


Data Sheet

Negotiable
AD775JR-REEL
AD775JR-REEL

Analog Devices Inc.

IC ADC 8BIT SAMPLING 5V 24SOIC

Data Sheet

Negotiable
AD775JR
AD775JR

Analog Devices Inc.

IC ADC 8BIT SAMPLING 5V 24SOIC

Data Sheet

Negotiable
