Product Summary
The LM211DR is a single high-speed voltage comparator. The LM211DR is designed to operate from a wide range of power-supply voltages, including ±15V supplies for operational amplifiers and 5V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. The LM211DR is capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC-. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
Parametrics
LM211DR absolute maximum ratings: (1)Supply voltage: VCC+:18 V, VCC-:-18 V, VCC+ - VCC-:36 V; (2)Differential input voltage, VID:±30 V; (3)Input voltage, VI:±15 V; (4)Voltage from emitter output to VCC-:30 V; (5)Voltage from collector output to VCC-:50 V; (6)Duration of output short circuit: 10 s; (7)Package thermal impedance, θJA:97℃/W; (8)Operating virtual junction temperature, TJ:150℃; (9)Lead temperature 1,6 mm(1/16 inch) from case for 60 seconds:260℃; (10)Storage temperature range, Tstg:-65℃ to 150℃.
Features
LM211DR features: (1)Fast Response Times; (2)Strobe Capability; (3)Maximum Input Bias Current:300 nA; (4)Maximum Input Offset Current:70 nA; (5)Can Operate From Single 5-V Supply; (6)Available in Q-Temp Automotive:High-Reliability Automotive Applications, Configuration Control/Print Support, Qualification to Automotive Standards.

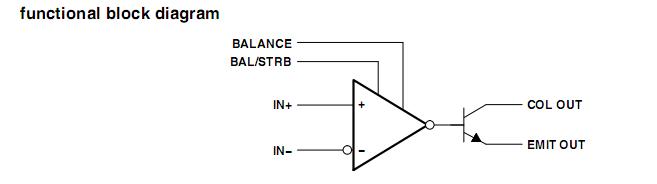

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM211DR |
Texas Instruments |
Comparator ICs Differential w/Strob |
Data Sheet |
|
|
||||||||||||
|
LM211DR2 |
ON Semiconductor |
Comparator ICs 5-30V SGL Comparator |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM211DR2G |
ON Semiconductor |
Comparator ICs 5-30V SGL Comparator -25 to 85 deg C |
Data Sheet |
|
|
||||||||||||
|
LM211DRG4 |
Texas Instruments |
Comparator ICs Single Strobed Differential |
Data Sheet |
|
|
||||||||||||
|
LM211DRE4 |
Texas Instruments |
Comparator ICs Single Strobed Differential |
Data Sheet |
|
|
||||||||||||
