Product Summary
The EL2480CSZ-T7 is a quad current-feedback operational amplifier which achieves a -3dB bandwidth of 250MHz at a gain of +1 while consuming only 3mA of supply current per amplifier. It will operate with dual supplies ranging from ±1.5V to ±6V, or from single supplies ranging from +3V to +12V. In spite of its low supply current, the EL2480CSZ-T7 can output 55mA while swinging to ±4V on ±5V supplies. These attributes make the device an excellent choice for low power and/or low voltage cable-driver, HDSL, or RGB applications. The applications of the EL2480CSZ-T7 include: (1)Low power/battery applications; (2)HDSL amplifiers; (3)Video amplifiers; (4)Cable drivers; (5)RGB amplifiers; (6)Test equipment amplifiers; (7)Current to voltage converters.
Parametrics
EL2480CSZ-T7 absolute maximum ratings: (1)Supply Voltage between VS+ and GND: +12.6V; (2)Voltage between VS+ and VS-: +12.6V; (3)Common-Mode Input Voltage: VS- to VS+; (4)Differential Input Voltage: ±6V; (5)Current into +IN or -IN: ±7.5mA; (6)Operating Ambient Temperature Range: -40℃ to +85℃; (7)Operating Junction Temperature Plastic Packages: 150℃; (8)Output Current: ±60mA; (9)Storage Temperature Range: -65℃ to +150℃.
Features
EL2480CSZ-T7 features: (1)Quad topology; (2)3mA supply current (per amplifier); (3)250MHz -3dB bandwidth; (4)Low cost; (5)Single- and dual-supply operation down to ±1.5V; (6)0.05%/0.05°diff. gain/diff. phase into 150Ω; (7)1200V/μs slew rate; (8)Large output drive current - 55mA; (9)Also available with disable in triple; (10)Pb-Free plus Anneal available (RoHS compliant).

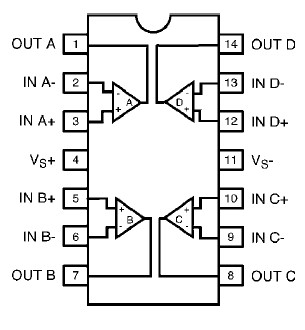

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EL2480CSZ-T7 |
IC OPAMP QUAD 250MHZ/3MA 14-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
