MC68332ACF16

Product Summary

The MC68332ACF16 is a highly-integrated 32-bit microcontroller. It combines high performance data manipulation capabilities with powerful peripheral subsystems. The MC68332ACF16 MCU is built up from standard modules that interface through a common intermodule bus (IMB). Standardization facilitates rapid development of devices tailored for specific applications. The MC68332ACF16 MCU incorporates a 32-bit CPU (CPU32), a system integration module (SIM), a time processor unit (TPU), a queued serial module (QSM), and a 2-Kbyte static RAM module with TPU emulation capability (TPURAM). The MC68332ACF16 MCU can either synthesize an internal clock signal from an external reference or use an external clock input directly. Operation with a 32.768-kHz reference frequency is standard. The maximum system clock speed is 20.97 MHz. System hardware and software allow changes in clock rate during operation. Because MCU operation is fully static, register and memory contents are not affected by clock rate changes.

Parametrics

MC68332ACF16 absolute maximum ratings: (1)RAM Size: 2K x 8; (2)Number of I /O: 15 ; (3)Package / Case: 132-BQFP Bumpered; (4)Speed: 16MHz; (5)Core Processor: CPU32 ; (6)Core Size: 32-Bit; (7)Operating Temperature: -40 ~ 85℃; (8)Connectivity: EBI/EMI, SCI, SPI, UART/USART ; (9)Peripherals: POR, PWM, WDT; (10)Voltage - Supply (Vcc/Vdd): 4.5 V ~ 5.5 V; (11)Lead Free Status: Contains Lead; (12)RoHS Status: RoHS Non-Compliant.

Features

MC68332ACF16 features: (1)Central Processing Unit (CPU32); (2)32-Bit Architecture; (3)Virtual Memory Implementation; (4)Table Lookup and Interpolate Instruction; (5)Improved Exception Handling for Controller Applications; (6)High-Level Language Support; (7)Background Debugging Mode; (8)Fully Static Operation; (9)System Integration Module (SIM); (10)External Bus Support; (11)Programmable Chip-Select Outputs; (12)System Protection Logic; (13)Two 8-Bit Dual Function Input/Output Ports; (14)One 7-Bit Dual Function Output Port; (15)Phase-Locked Loop (PLL) Clock System; (16)Time Processor Unit (TPU); (17)Dedicated Microengine Operating Independently of CPU32; (18)16 Independent, Programmable Channels and Pins; (19)Any Channel can Perform any Time Function; (20)Two Timer Count Registers with Programmable Prescalers; (21)Selectable Channel Priority Levels.

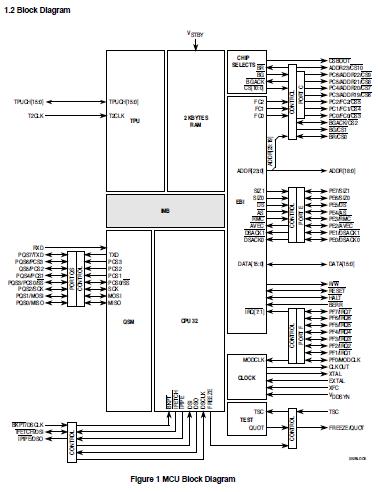

Diagrams
