Product Summary
This DM74ALS14MX device contains six independent gates, each of which performs the logic INVERT function. Each input has hyster-esis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter-free output.
Parametrics
DM74ALS14MX features: (1)Input hysteresis; (2)Low output noise generation; (3)High input noise immunity; (4)Switching specification at 50 pF; (5)Switching specifications guaranteed over full tempera-ture and VCC range; (6)Advanced oxide-isolated, ion-implanted Schottky TTL process; (7)Functionally and pin-for-pin compatible with Schottky and low power Schottky TTL counterparts; (8)Improved AC performance over low power Schottky counterpart.
Features
DM74ALS14MX absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Storage Temperature Range: -65 to 150℃; (4)Operating Free Air Temperature Range: 0 to 70℃; (5)Typical JA, N Package: 78.5/W; (6)Typical JA, M Package: 109.0/W.

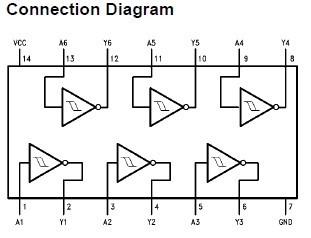

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

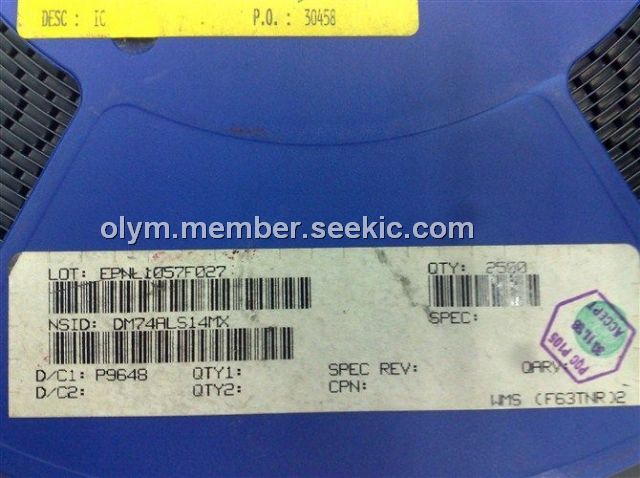

DM74ALS14MX |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
Negotiable |
|
|||||
