Product Summary
The 2SA1460 is a PNP silicon transistor designed for power amplifier and high speed switching applications.
Parametrics
2SA1460 absolute maximum ratings: (1)maximum temperature: -55 to 150℃; (2)Junction temperature: 150℃; (3)Total power dissipation: 1.0W; (4)VCBO: -60V; (5)VCEO: -45V; (6)VEBO: -5.0V; (7)IC(DC): -1.0A.
Features
2SA1460 features: (1)high speed, high volatge switching; (2)Low colllector saturation volatge; (3)Complementary to the NEC 2SC3733 NPN transistor.

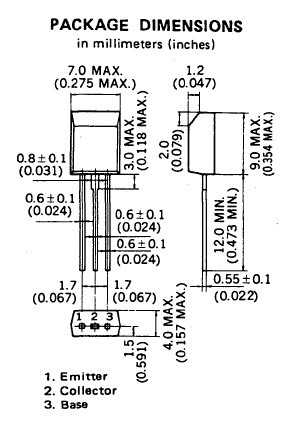

Diagrams
 |
