Product Summary

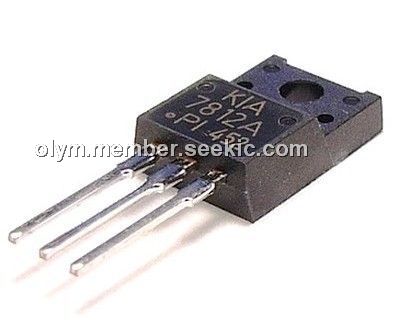

The KIA7812A is a three terminal positive voltage regulator.

Parametrics

KIA7812A absolute maximum ratings: (1)Input Voltage, VIN: 35V; (2)Power Dissipation PD: 12W; (3)Operating Junction Temperature Tj: -30 to 150℃; (4)Storage Temperature Tstg: -55 to 150℃.

Features

KIA7812A features: (1)Suitable for C-MOS, TTL, the Other Digital IC Power Supply; (2)Internal Thermal Overload Protection; (3)Internal Short Circuit Current Limiting; (4)Output Current in Excess of 1A; (5)Satisfies IEC-65 Specification (International Electronical Commission); (6)Package is DPAK.

Diagrams

KIA7812A EQUIVALENT CIRCUIT
