Product Summary
The 74HC245PW is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). The 74HC245PW is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74HC245PW features an output enable input (OE) for easy cascading and a send/receive input (DIR) for direction control. OE controls the outputs so that the buses are effectively isolated. The 74HC245PW has true (non-inverting) outputs.
Parametrics
74HC245PW absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7 V; (2)IIK, input diode current: ±20 mA; (3)IOK, output diode current: ±20 mA; (4)IO, output source or sink current: ±35 mA; (5)ICC, IGND VCC or GND current: ±70 mA; (6)Tstg, storage temperature: -65 to +150℃; (7)Ptot, total power dissipation: 750 mW.
Features
74HC245PW features: (1)Octal bidirectional bus interface; (2)Non-inverting 3-state outputs; (3)Multiple package options; (4)Complies with JEDEC standard no. 7A; (5)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; (6)nSpecified from -40℃to+85℃ and from -40℃ to +125℃.

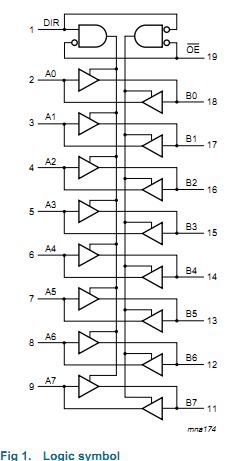

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC245PW,112 |
NXP Semiconductors |
Bus Transceivers OCTAL BUS XCVR 3ST |
Data Sheet |
|
|
||||||||||||
|
74HC245PW,118 |
NXP Semiconductors |
Bus Transceivers OCTAL TRANSCEIVER |
Data Sheet |
|
|
||||||||||||
|
74HC245PW-T |
NXP Semiconductors |
Bus Transceivers OCTAL TRANSCEIVER |
Data Sheet |
Negotiable |
|
||||||||||||
