Product Summary

The SN74HC245NSR octal bus transceiver is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input.

Parametrics

SN74HC245NSR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, θJA: DB package: 70℃/W; DW package: 58℃/W; N package: 69℃/W; NS package: 60℃/W; PW package: 83℃/W; (7)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN74HC245NSR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current 3-State Outputs Drive Bus, Lines Directly or Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 12 ns; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.

Diagrams

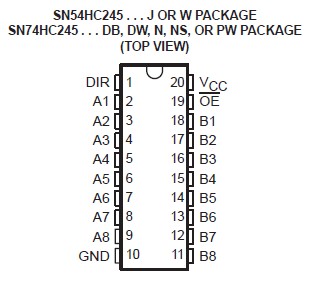

SN74HC245NSR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74HC245NSR
SN74HC245NSR

Texas Instruments

Bus Transceivers Tri-State Octal Bus

Data Sheet

0-1: $0.33
1-25: $0.23
25-100: $0.20
100-250: $0.17
SN74HC245NSRE4
SN74HC245NSRE4

Texas Instruments

Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs

Data Sheet

0-1: $0.28
1-25: $0.22
25-100: $0.19
100-250: $0.17
SN74HC245NSRG4
SN74HC245NSRG4

Texas Instruments

Bus Transceivers Octal Bus Trnscvrs With 3-State Outputs

Data Sheet

0-1: $0.28
1-25: $0.22
25-100: $0.19
100-250: $0.17
