Product Summary

The SN74LVC2G14DCKR is a dual bus buffer gate, designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G14DCKR features dual line drivers with 3-state outputs. The outputs are disabled when the associated output-enable (OE) input is high. NanoStar and NanoFree. package technology of the SN74LVC2G14DCKR is a major breakthrough in IC packaging concepts, using the die as the package.

Parametrics

SN74LVC2G14DCKR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 6.5 V; (2)VI Input voltage range: –0.5 to 6.5 V; (3)VO Voltage range applied to any output in the high-impedance or power-off state: –0.5 to 6.5 V; (4)VO Voltage range applied to any output in the high or low state: –0.5 to VCC + 0.5 V; (5)IIK Input clamp current VI < 0: –50 mA; (6)IOK Output clamp current VO < 0: –50 mA; (7)IO Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA.

Features

SN74LVC2G14DCKR features: (1)Available in the Texas Instruments NanoStar and NanoFree Packages; (2)Supports 5-V VCC Operation; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 5.4 ns at 3.3 V; (5)Low Power Consumption, 10-μA Max ICC; (6)±24-mA Output Drive at 3.3 V; (7)Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25℃; (8)Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25℃; (9)Ioff Feature Supports Partial-Power-Down Mode Operation; (10)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (11)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); 1000-V Charged-Device Model (C101).

Diagrams

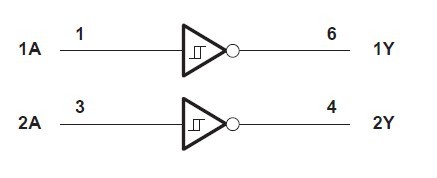

SN74LVC2G14DCKR logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVC2G14DCKR
SN74LVC2G14DCKR

Texas Instruments

Inverters Dual Schmitt-Trigger

Data Sheet

0-1: $0.23
1-25: $0.15
25-100: $0.13
100-250: $0.11
SN74LVC2G14DCKRE4
SN74LVC2G14DCKRE4

Texas Instruments

Inverters Dual Schmitt-Trigger

Data Sheet

0-1: $0.29
1-25: $0.23
25-100: $0.19
100-250: $0.17
SN74LVC2G14DCKRG4
SN74LVC2G14DCKRG4

Texas Instruments

Inverters Dual Schmitt-Trigger

Data Sheet

0-1: $0.33
1-25: $0.24
25-100: $0.21
100-250: $0.18
