Product Summary
The OXUF922-LQBG is a combined USB2.0 and 1394B bridge to any IDE device or DMA based SRAM architecture. The OXUF922-LQBG has two timer modules which can be either a programmable 16-bit down counting interval (re-loading) or a timeout (one-shot)counter used for generating timed interrupts to the processor.
Features
OXUF922-LQBG features: (1)1394B Phy Interface and Link; (2)Backward compatible with 1394A; (3)800Mb/s Support; (4)SBP2 Bus Mastering; (5)USB2.0 Phy and Link Layer; (6)Backward Compatible with USB1.1; (7)480Mb/s Support; (8)Bulk Transfer USB Slave receiver; (9)100MHz IDE interface; (10)Full support for AT A6 Drives; (11)LBA support for large drives; (12)Full Master and Slave support; (13)Supports Data Rates up to 80MBytes/s; (14)Simple DMA master scheme; (15)ORB accelerator; (16)50MHz Clock Rate; (17)8KByte Closely Coupled RAM; (18)12Mb/s Async UART; (19)Extended 128Byte Buffer; (20)Local Bus Support; (21)Generic bus support for external peripherals; (22)8 GPIO pins; (23)Programmable IO; (24)6KByte Cache for USB or 1394 data; (25)0.18mm advanced CMOS process; (26)160 LQFP or 176 VFBGA; (27)I/O Supply Voltage 3.3V +/- 0.3V; (28)Core Supply Voltage 1.8V +/- 0.15V.

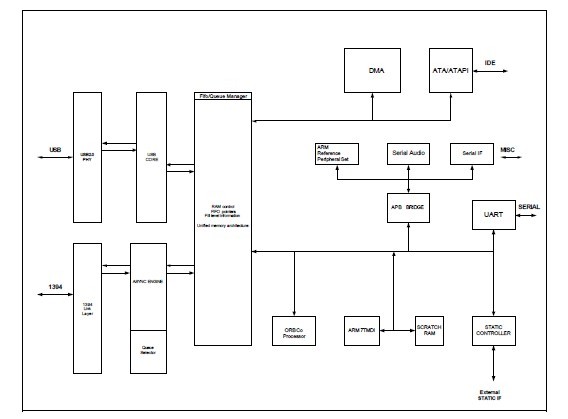

Diagrams
 |
