Product Summary

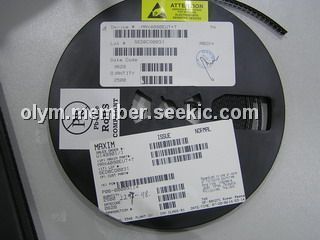

The MAX4090EUT+T is a 3V/5V, 6dB video buffer with sync-tip clamp, and low-power shutdown mode. It is available in tiny SOT23, SC70, and μDFN packages. The device is designed to drive DC-coupled, 150Ω back-terminated video loads in portable video applications such as digital still cams, portable DVD players, digital camcorders, PDAs, video-enabled cell phones, portable game systems, and notebook computers. The MAX4090EUT+T operates from a single 2.7V to 5.5V supply and consumes only 6.5mA of supply current. The applications of the MAX4090EUT+T include: Portable Video/Game Systems/DVD Players, Digital Camcorders/Televisions/Still Cameras, PDAs, Video-Enabled Cell Phones, Notebook Computers, Portable/Flat-Panel Displays.
Parametrics
MAX4090EUT+T absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)OUT, FB, SHDN to GND: -0.3V to (VCC + 0.3V); (3)IN to GND: VCLP to (VCC + 0.3V); (4)IN Short-Circuit Duration from -0.3V to VCLP: 1min; (5)Continuous Power Dissipation (TA = +70℃) 6-Pin SOT23 (derate 8.7mW/℃ above +70℃): 695mW; 6-Pin SC70 (derate 3.1mW/℃ above +70℃): 245mW; 6-Pin μDFN (derate 3.6mW/℃ above +70℃): 290mW; (6)Operating Temperature Range: -40℃ to +85℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10s: +300℃.
Features
MAX4090EUT+T features: (1)Single-Supply Operation from 2.7V to 5.5V; (2)Input Sync-Tip Clamp; (3)DC-Coupled Output; (4)Low-Power Shutdown Mode Reduces Supply Current to 150nA; (5)Available in Space-Saving SOT23, SC70, and μDFN Packages.

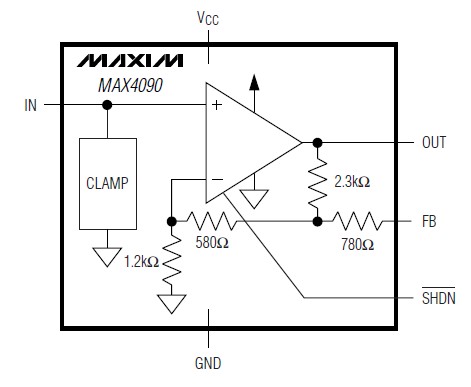

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4090EUT+T |
Maxim Integrated Products |
Video Amplifiers 3V/5V 6dB Video Buff w/Sync-Tip Clamp |
Data Sheet |
|
|
||||||||||||
