Product Summary

The ISSI IS62WV2568BLL-55HLI is a highspeed, 2M bit static RAM organized as 256K words by 8 bits. It is fabricated using ISSI high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption device. The IS62WV2568BLL-55HLI is packaged in the JEDEC standard 32-pin TSOP (TYPE I), sTSOP(TYPE I), and 36-pin mini BGA.

Parametrics

IS62WV2568BLL-55HLI absolute maximum ratings: (1)Vterm Terminal Voltage with Respect to GND: –0.2 to Vcc+0.3 V; (2)Tstg Storage Temperature: –65 to +150 ℃; (3)Pt Power Dissipation: 1.0 W.

Features

IS62WV2568BLL-55HLI features: (1)High-speed access time: 45ns, 55ns, 70ns; (2)CMOS low power operation; (3)36 mW (typical) operating; (4)9 μW(typical) CMOS standby; (5)TTL compatible interface levels; (6)Single power supply: 1.65V--2.2V Vcc (62WV2568ALL); 2.5V--3.6V Vcc (62WV2568BLL); (7)Fully static operation: no clock or refresh required; (8)Three state outputs; (9)Industrial temperature available; (10)Lead-free available.

Diagrams

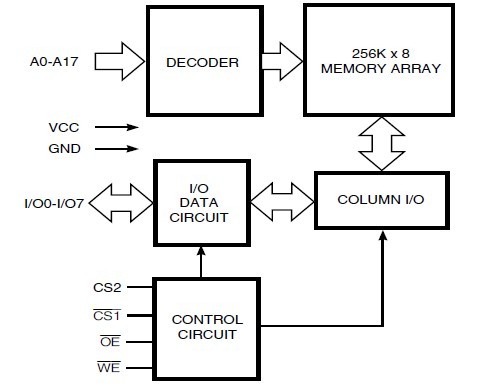

IS62WV2568BLL-55HLI BLOCK DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IS62WV2568BLL-55HLI
IS62WV2568BLL-55HLI
ISSI
SRAM 2Mb 256Kx8 55ns Async SRAM
Data Sheet
0-1: $1.66
1-25: $1.57
25-100: $1.44
100-500: $1.39
IS62WV2568BLL-55HLI-TR
IS62WV2568BLL-55HLI-TR
ISSI
SRAM 2Mb 256Kx8 55ns Async SRAM
Data Sheet
0-2000: $1.31
2000-6000: $1.18
