Product Summary

The IS62C1024AL-35QLI is a low power,131,072-word by 8-bit CMOS static RAM. It is fabricated using ISSI’s high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices. When CE1 is HIGH or CE2 is LOW(deselected), the IS62C1024AL-35QLI assumes a standby mode at which the power dissipation can be reduced by using CMOS input levels.

Parametrics

IS62C1024AL-35QLI absolute maximum ratings: (1)Terminal Voltage with Respect to GND:–0.5V to +7.0V; (2)Storage Temperature:–65℃ to +150℃; (3)Power Dissipation: 1.5W; (4)DC Output Current (LOW): 20mA.

Features

IS62C1024AL-35QLI features: (1)High-speed access time: 35, 45 ns; (2)Low active power: 100 mW (typical); (3)Low standby power: 20 μW (typical) CMOS standby; (4)Output Enable (OE) and two Chip Enable (CE1 and CE2) inputs for ease in applications; (5)Fully static operation: no clock or refresh required; (6)TTL compatible inputs and outputs; (7)Single 5V (±10%) power supply.

Diagrams

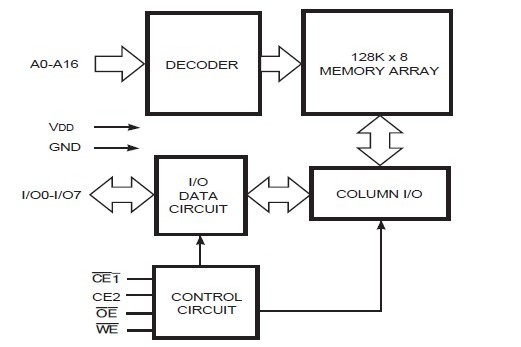

IS62C1024AL-35QLI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

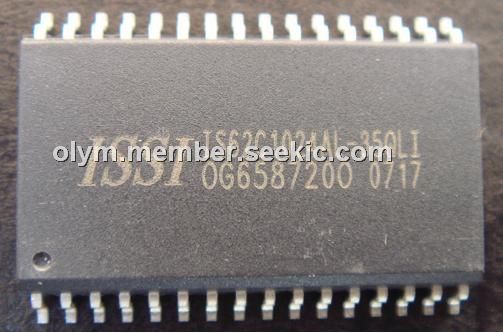

IS62C1024AL-35QLI
IS62C1024AL-35QLI

ISSI

SRAM 1Mb 128K x 8 35ns 5v Async SRAM 5v

Data Sheet

0-1: $1.56
1-25: $1.40
25-100: $1.25
100-500: $1.09
IS62C1024AL-35QLI-TR
IS62C1024AL-35QLI-TR

ISSI

SRAM 1Mb 128K x 8 35ns 5v Async SRAM 5v

Data Sheet

0-1000: $1.16
1000-2000: $1.15
2000-5000: $1.06
