Product Summary

The ADL5513ACPZ is a demodulating logarithmic amplifier, capable of accurately converting an RF input signal to a corresponding decibel-scaled output. It employs the progressive compression technique over a cascaded amplifier chain, each stage of which is equipped with a detector cell. The device can be used in either measurement or controller modes. The ADL5513ACPZ maintains accurate log conformance for signals up to 4 GHz. The ADL5513ACPZ can be configured to provide a control voltage to a power amplifier or a measurement output from the VOUT pin. The ADL5513ACPZ is fabricated on a SiGe bipolar IC process and is available in a 3 mm × 3 mm, 16-lead LFCSP package for the -40℃ to +125℃ operating temperature range. A fully populated evaluation board is available.

Parametrics

ADL5513ACPZ absolute maximum ratings: (1)Supply Voltage, VPOS: 5.5V; (2)VSET Voltage: 0 V to VPOS; (3)Input Power (Single-Ended, Re: 50 Ω): 20 dBm; (4)Internal Power Dissipation: 220 mW; (5)θJA: 79.3℃/W; (6)Maximum Junction Temperature: 150℃; (7)Operating Temperature Range: -40℃ to +125℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (Soldering, 60 sec): 260℃.

Features

ADL5513ACPZ features: (1)Wide bandwidth: 1 MHz to 4 GHz; (2)80 dB dynamic range (±3 dB) Constant dynamic range over frequency; (3)Stability over -40℃ to +85℃ temperature range: ±0.5 dB Operating temperature range: -40℃ to +125℃; (4)Sensitivity: -70 dBm; (5)Low noise measurement/controller output (VOUT); (6)Pulse response time: 21 ns/20 ns (fall/rise); (7)Single-supply operation: 2.7 V to 5.5 V @ 31 mA; (8)Power-down feature: 1 mW @ 5 V; (9)Small footprint LFCSP; (10)Fabricated using high speed SiGe process.

Diagrams

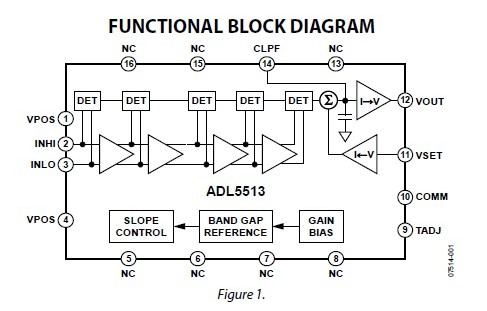

ADL5513ACPZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADL5513ACPZ-R7
ADL5513ACPZ-R7


IC LOG DETECTOR/CTRLR 16 LFCSP

Data Sheet

0-1: $6.82
1-10: $6.18
10-25: $5.73
25-100: $5.25
100-250: $4.80
250-500: $4.47
