Product Summary

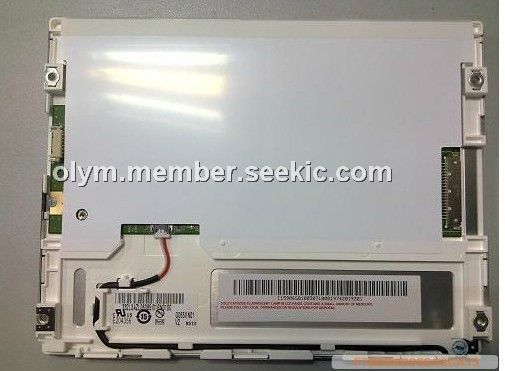

The G057VN01 V.1 is a 5.7 inch color TFT-LCD. The device is designed for industrial display applications with VGA resolution and 262k colors. The G057VN01 V.1 is composed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit. The device offers CMOS interface for display signal input.

Parametrics

G057VN01 V.1 absolute maximum ratings: (1)logic/LCD drive voltage, Vin: -0.3 to 3.6Volt; (2)LED backlight forward current, ILED: 0 to 20mA; (3)operating temperature, Top: -30 to 85℃; (4)operating humidity, HOP: 5 to 95%RH; (5)storage temeprature, Tst: -30 to 85℃; (6)storage humidity: 5 to 95%RH.

Features

G057VN01 V.1 features: (1)Panel Size: 5.7inch ; (2)Dot Resolution: 640(RGB)×480, VGA; (3)Aspect Ratio: 4:3(W:H); (4)Pixel Pitch: 0.180×0.180 mm (W×H); (5)Weight: 160/175g (Typ./Max.); (6)Surface: antiglare, hard coating (3H); (7)Active Area: 115.2×86.4 mm (W×H); (8)Bezel Area: 118.2×89.4 mm (W×H); (9)Outline Dimension: 144.0×104.6 mm (W×H); (10)Outline Depth: 12.3 (Typ.) mm; (11)Holes & Brackets: Rear mounting holes (4-Φ2.6); (12)Touch Panel: without.
