Product Summary

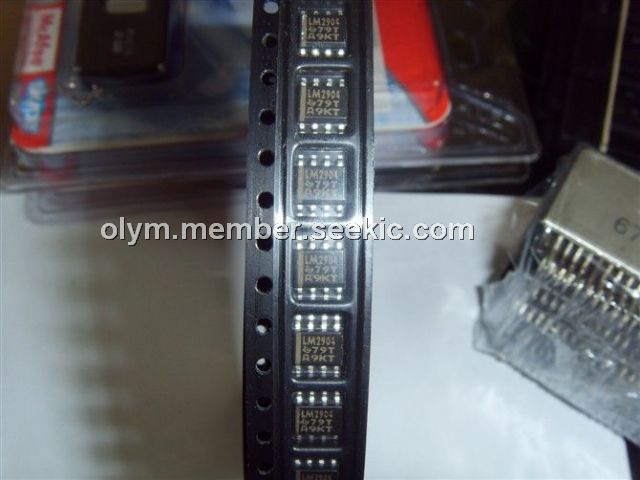

The LM2904 is a low power dual operational amplifier. LM2904 is designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas of the LM2904 include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems.
Parametrics
LM2904M absolute maximum ratings: (1)Supply Voltage, V+: 26V; (2)Differential Input Voltage: 26V; (3)Input Voltage: -0.3V to +26V; (4)Power Dissipation: 830 mW; (5)Input Current (VIN < -0.3V): 50mA; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature, DIP: 260℃; (9)Lead Temperature, Metal Can: 300℃; (10)ESD Tolerance: 250V.
Features
LM2904 features: (1)Available in 8-Bump micro SMD chip sized package; (2)Internally frequency compensated for unity gain; (3)Large dc voltage gain: 100 dB; (4)Wide bandwidth (unity gain): 1 MHz(temperature compensated); (5)Wide power supply range: Single supply: 3V to 32V; or dual supplies: ±1.5V to ±16V; (6)Very low supply current drain (500 μA)—essentially independent of supply voltage; (7)Low input offset voltage: 2 mV; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2904 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2904A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
LM2904ADMG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR -40 to 105deg C |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2904ADMR2 |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2904ADMR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR -40 to 105deg C |
Data Sheet |
|
|
||||||||||||
|
LM2904AN |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2904ANG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR -40 to 105deg C |
Data Sheet |
|
|
||||||||||||
|
LM2904AVQDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Operational Amp |
Data Sheet |
|
|
||||||||||||
