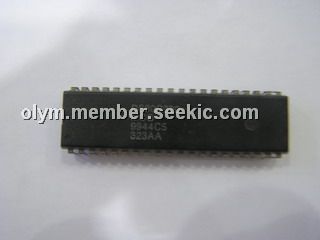

DS80C320MCG

fast 80C31-compatible microcontroller, 25MHZ, 40-DIP, 16-Bit, -0.3V to +6.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: DS80C320MCG

Brand:: Dallas Semiconductor - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jacker's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:DS80C320MCG
US $0.10 - 1.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

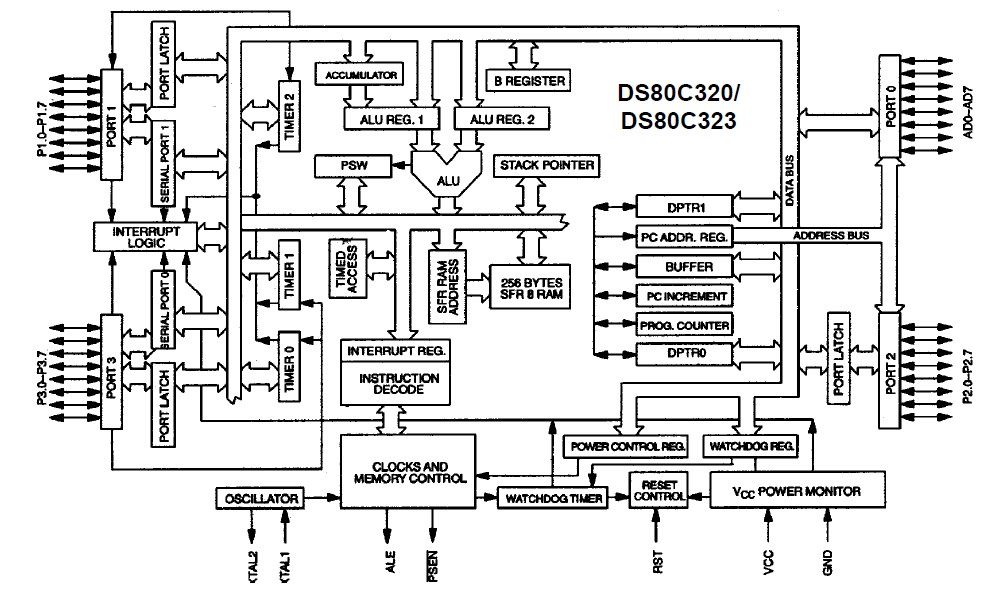

The DS80C320MCG is a fast 80C31-compatible microcontroller. Wasted clock and memory cycles have been removed using a redesigned processor core. As a result, every 8051 instruction is executed between 1.5 and 3 times faster than the original for the same crystal speed. Typical applications of the DS80C320MCG see a speed improvement of 2.5 times using the same code and same crystal. The DS80C320MCG offers a maximum crystal rate of 33MHz, resulting in apparent execution speeds of 82.5MHz (approximately 2.5X).

Parametrics

DS80C320MCG absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3V to (VCC + 0.5V); (2)Voltage Range on VCC Relative to Ground: -0.3V to +6.0V; (3)Operating Temperature Range: -40 to +85℃; (4)Storage Temperature Range: -55 to +125℃.

Features

DS80C320MCG features: (1)80C32-Compatible: 8051 Pin and Instruction Set Compatible Four 8-Bit I/O Ports; Three 16-Bit Timer/Counters; 256 Bytes Scratchpad RAM; Addresses 64kB ROM and 64kB RAM; (2)High-Speed Architecture: 4 Clocks/Machine Cycle (8032 = 12); DC to 33MHz; Single-Cycle Instruction in 121ns; Uses Less Power for Equivalent Work; Dual Data Pointer; Optional Variable Length MOVX to Access Fast/Slow RAM/Peripherals; (3)High-Integration Controller Includes: Power-Fail Reset; (4)Programmable Watchdog Timer; (5)Early Warning Power-Fail Interrupt; (6)Two Full-Duplex Hardware Serial Ports; (7)13 Total Interrupt Sources with Six External; (8)Available in 40-Pin DIP, 44-Pin PLCC, and 44-Pin TQFP.
