Product Summary

The X9511WPIZ is a push button controlled potentiometer that is ideal for push button controlled resistance trimming. The X9511WPIZ is a resistor array composed of 31 resistive elements. Between each element and at either end are tap points accessible to the wiper element. The position of the wiper element is controlled by the PU and PD inputs. The position of the wiper can be automatically stored in E2 memory and then be recalled upon a subsequent power-on operation. The resolution of the X9511WPIZ is equal to the maximum resistance value divided by 31.

Parametrics

X9511WPIZ absolute maximum ratings: (1)Temperature under bias: -65℃ to +135℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on PU, PD, and VCC with respect to VSS: -1V to +7V; (4)Voltage on VH and VL referenced to VSS: -8V to +8V; (5)△V = |VH - VL|X9511W: 10V; (6)Lead temperature (soldering 10 seconds): 300℃; (7)Wiper current: ±1mA.

Features

X9511WPIZ features: (1)Push button controlled; (2)Low power CMOS: Active current, 3mA max; Standby current, 200μA max; (3)31 resistive elements: Temperature compensated; ±20% end to end resistance range; -5V to +5V range; (4)32 wiper tap points; (5)100 year wiper position data retention; (6)X9511W = 10KΩ; (7)Packages: 8 Ld PDIP; 8 Ld SOIC; (8)Pb-free plus anneal available (RoHS compliant).

Diagrams

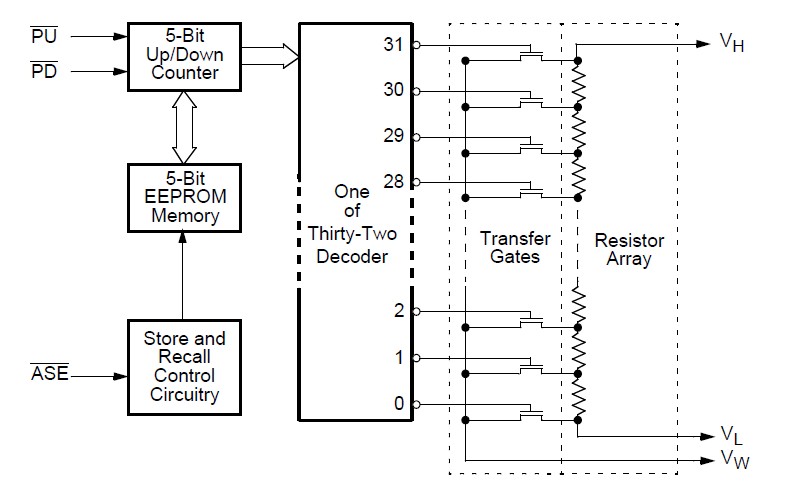

X9511WPIZ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
X9511WPIZ
X9511WPIZ

IC XDCP SGL PB 32TAP 10K 8-DIP
Data Sheet
0-250: $1.46
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
X9511
X9511
Other

Data Sheet
Negotiable
X9511WP
X9511WP

IC DIGITAL POT 10K 32TP 8DIP
Data Sheet
Negotiable
X9511WPI
X9511WPI

IC DIGITAL POT 10K 32TP 8DIP
Data Sheet
Negotiable
X9511WPIZ
X9511WPIZ

IC XDCP SGL PB 32TAP 10K 8-DIP
Data Sheet
0-250: $1.46
X9511WPZ
X9511WPZ

IC XDCP SGL 32TAP 10K 8-PDIP
Data Sheet
0-250: $1.18
X9511WS
X9511WS

IC DIGITAL POT 10K 32TP 8SOIC
Data Sheet
Negotiable
