Product Summary

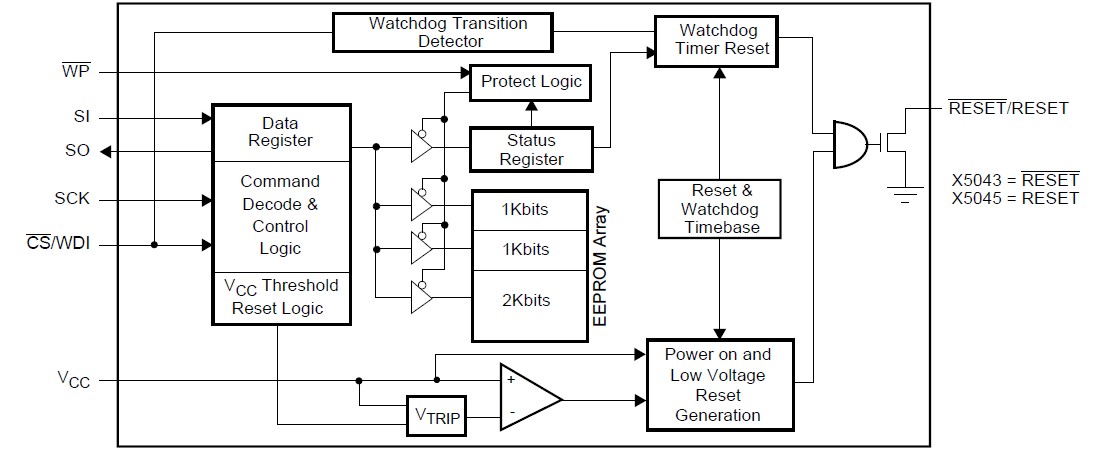

The X5045S8IZ-2.7T1 is a CPU Supervisor with 4Kbit SPI EEPROM. It combines four popular functions, Poweron Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the X5045S8IZ-2.7T1 activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor can execute code.

Parametrics

X5045S8IZ-2.7T1 absolute maximum ratings: (1)Temperature under bias: -65℃ to +135℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS: -1.0V to +7V; (4)D.C. output current: 5mA; (5)Lead temperature (soldering, 10 seconds): 300℃.

Features

X5045S8IZ-2.7T1 features: (1)Selectable watchdog timer; (2)Low VCC detection and reset assertion; (3)Long battery life with low power consumption; (4)2.7V to 5.5V and 4.5V to 5.5V power supply versions; (5)4Kbits of EEPROM–1M write cycle endurance; (6)Save critical data with Block Lock memory; (7)Built-in inadvertent write protection; (8)3.3MHz clock rate; (9)Minimize programming time; (10)SPI modes (0,0 & 1,1); (11)Available packages: —8-lead MSOP, 8-lead SOIC, 8-pin PDIP; —14-lead TSSOP.
