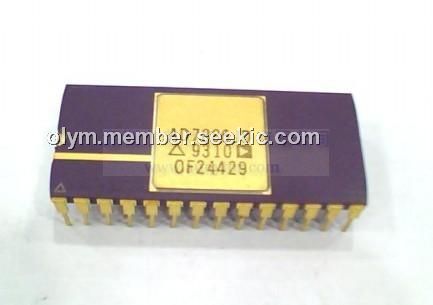

AD7886JD

12-bit ADC, ±5 V, 28-pin DIP, LC2MOS, 750 kHz/1 MHz, 250 mW typ, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $120.00~200.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $120.00~200.00

PartNumber:: AD7886JD

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 94+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jacker's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-21

From Other Seller

Part Number:AD7886JD
US $120.00 - 200.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD7886JD is a 12-bit ADC with a sample-and-hold amplifier offering high speed performance combined with low power dissipation. It is a triple pass flash ADC that uses 15 comparators in a 4-bit flash technique to achieve 12-bit accuracy in 1 ms/750 ns conversion time. The AD7886JD operates from ±5 V power supplies. In addition to the traditional dc accuracy specifications such as linearity, offset and full-scale errors, the AD7886JD is also specified for dynamic performance parameters, including harmonic distortion and signal-to-noise ratio.

Parametrics

AD7886JD absolute maximum ratings: (1)VDD to AGND: –0.3 V to +7 V; (2)VSS to AGND: +0.3 V to –7 V; (3)AGND to DGND: –0.3 V to VDD +0.3 V; (4)VIN1, VIN2, SUM, +5REF to AGND: –15 V to +15 V; (5)VREF to AGND: VSS –0.3 V to VDD +0.3 V; (6)Digital Inputs to DGND, CS, RD, CONVST: –0.3 V to VDD +0.3 V; (7)Digital Outputs to DGND, DB0 to DB11, BUSY: –0.3 V to VDD +0.3 V; (8)Operating Temperature Range: Commercial (J, K Versions): 0℃ to +70℃; Industrial (B Version): –40℃ to +85℃; Extended (T Version): –55℃ to +125℃; (9)Storage Temperature Range: –65℃ to + 150℃; (10)Lead Temperature (Soldering, 10 secs): +300℃; (11)Power Dissipation (Any Package) to +75℃: 1000 mW; (12)Derates above +75℃ by: 10 mW/℃.

Features

AD7886JD features: (1)750 kHz/1 MHz Throughput Rate; (2)1 us/750 ns Conversion Time; (3)12-Bit No Missed Codes Over Temperature; (4)67 dB SNR at 100 kHz Input Frequency; (5)Low Power: 250 mW typ; (6)Fast Bus Access Time: 57 ns max.
