Product Summary

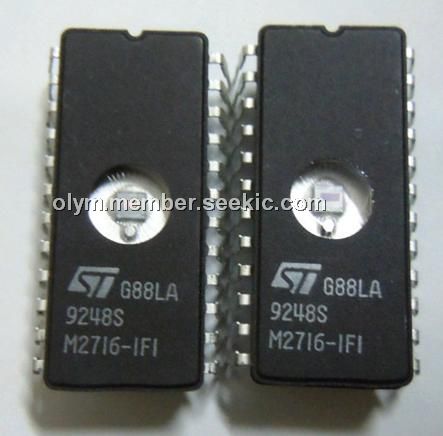

The M2716-1F1 is a 16,384 bit UV erasable and electrically programmable memory EPROM, ideally suited for applications where fast turn around and pattern experimentation are important requirements. The M2716-1F1 is housed in a 24 pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
Parametrics
M2716-1F1 absolute maximum ratings: (1)TA Ambient Operating Temperature: 0 to 70℃; (2)TBIAS Temperature Under Bias: –10 to 80℃; (3)TSTG Storage Temperature: –65 to 125 ℃; (4)VCC Supply Voltage: –0.3 to 6 V; (5)VIO Input or Output Voltages: –0.3 to 6 V; (6)VPP Program Supply: –0.3 to 26.5 V; (7)PD Power Dissipation: 1.5 W.
Features
M2716-1F1 features: (1)2048 x 8 organization; (2)525mW Max active power, 132mW Max standby power; (3)access time: – M2716-1 is 350ns; – M2716 is 450ns; (4)single 5V supply voltage; (5)static-no clocks required; (6)inputs and outputs ttl compatible during both read and program modes; (7)three-state output with tied-orcapability; (8)extended temperature range; (9)programming voltage: 25V.

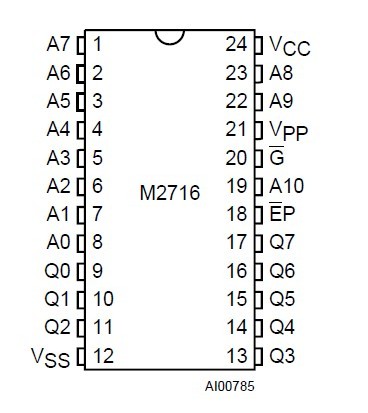

Diagrams
 |
