Product Summary
The 7MBR50SA060-50 is an IGBT module. It is used in Inverter for motor drive, AC and DC servo drive amplifier, Uninterruptible power supply.
Parametrics
7MBR50SA060-50 absolute maximum ratings: (1)inverter: Collector-Emitter voltage, VGES: 600V; Gate-Emitter voltage, VGES: ±20V; Collector current: IC: 50A; ICP: 100A; -IC: 50A; Collector power disspation, PC: 200w; (2)braker: Collector-Emitter voltage, VGES: 600V; Gate-Emitter voltage, VGES: ±20V; Collector current: IC: 30A; ICP: 60A; Collector power disspation PC: 200w; Repetitive peak reverse voltage, VRRM: 600V; (3)converter: Repetitive peak reverse voltage, VRRM: 800V; Average output current, Io: 50A at 50HZ/60HZ sine wave; Surge current(Non-Repetitive), IFSM: 350A at Tj=150℃,10ms; I2t (Non-Repetitive): 613 A2S at Tj=150℃,10ms; (4)Operating junction temperature, Tj: 150℃; (5)Storage temperature, Tstg: -40 to +125℃; (6)Isolation voltage,Viso: AC 2500 v at AC: 1min; (7)Mounting screw torque: 3.5N.m.
Features
7MBR50SA060-50 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

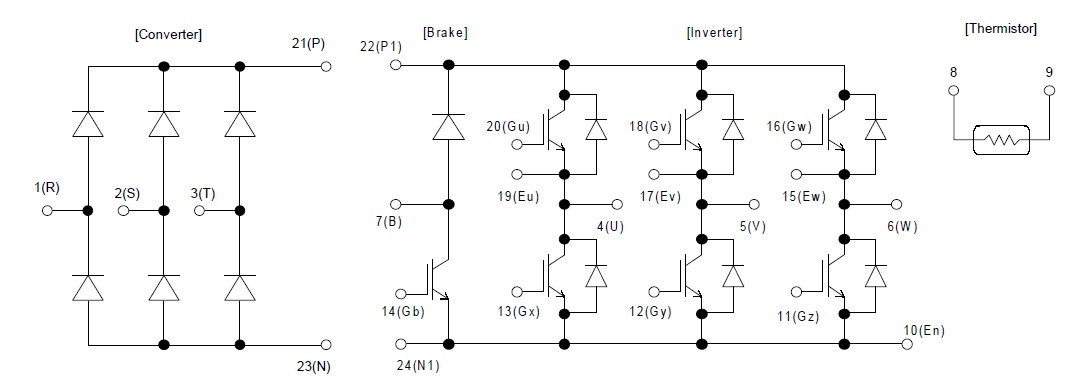

Diagrams
 |
