Product Summary

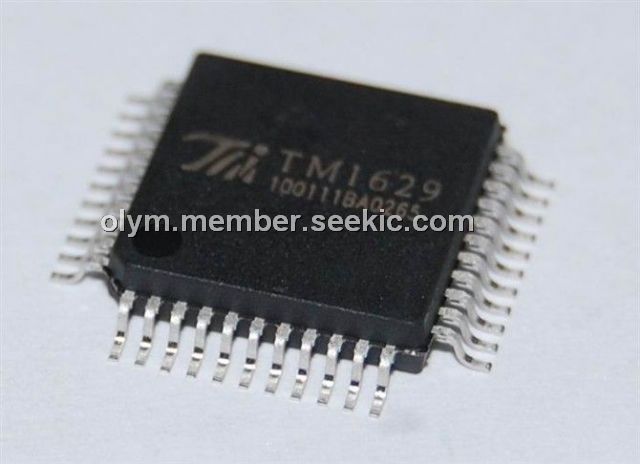

The TM1629 is a LED board driver IC with keyboard scan interface. Its internal integration has special MCU digital interface, data latches, LED driver, 8.0 gray regulating circuit, internal RC oscillation, internal has power on reset circuit and low voltage reset circuit, keyboard scan circuit. The segment and grid of the TM1629 can make out 16*8 by software to adapt to different Led display screen. It also can change the gray brightness according to the different occasions to reduce power dissipation. The TM1629 has more segments and really convenient for digital computing.
Parametrics
TM1629 specifications: (1)VDD: -0.5 to +7.0 V; (2)VI1: -0.5 to VDD + 0.5 V; (3)IO1: -50 mA; (4)IO2: +200 mA; (5)PD: 400 mW; (6)Topt: -40 to +80 ℃; (7)Tstg: -65 to +150 ℃.
Features
TM1629 electrical characteristics: (1)Ioh1: -20 to -40 mA; (2)Ioh2: -20 to -50 mA; (3)IOL1: 80 to 140 mA; (4)Idout: 4 mA; (5)Itolsg: 5 %; (6)RL: 10 KΩ; (7)II: ±1 μA; (8)VIH: 0.7 VDD V; (9)VIL: 0.3 VDD V; (10)VH: 0.35 V; (11)IDDdyn: 5 mA.

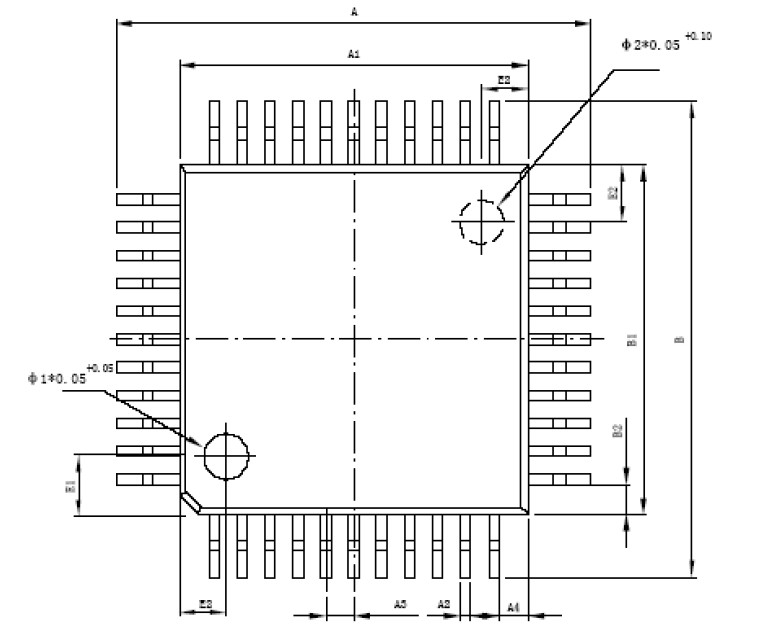

Diagrams
 |
