Product Summary

The SS495A1 is a sensor designed as one kind of miniature ratiometric linear that has a ratiometric output voltage, set by the supply voltage. It varies in proportion to the strength of the magnetic field. The quad Hall sensing element minimizes the effects of mechanical or thermal stress on the output. The positive temperature coefficient of the sensitivity (+0.02%/℃ typical) helps compensate for the negative temperature coefficients of low cost magnets, providing a robust design over a wide temperature range.

Parametrics

SS495A1 specifications:(1)supply voltage (VDC): 4.5 to 10.5; (2)supply current @ 25℃(mA):7.0; (3)output type(sink or source):ratiometric; (4)magnetic range:-670 to +670 gauss (-67 to +67 mT); (5)output voltage span:0.2 to (Vs-0.2); (6)null (output@ 0 gauss,V):2.50±0.075; (7)sensitivity(mV/G):3.125±0.094; (8)linearity,% of span:–1.0%; (9)temperature error null drift(%/℃):±0.04%.

Features

SS495A1 features:(1)operating temperature range of -40 to +150℃; (2)responds to either positive or negative gauss; (3)quad hall sensing element for stable output; (4)rail-to-rail operation provides more useable signal for higher accuracy; (5)built-in thin-film resistors-laser trimmed for precise sensitivity and temperature compensation; (6)single current sinking or current sourcing linear output; (7)low power consumption-typically 7 mA at 5 VDC; (8)small size (.160 X.118N).

Diagrams

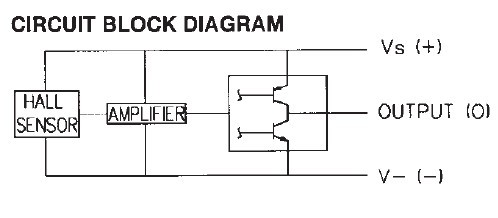

SS495A1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

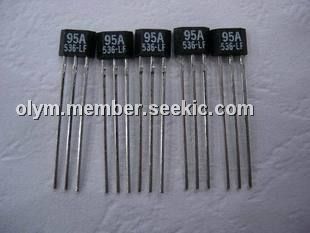

SS495A1
SS495A1

Honeywell

Board Mount Hall Effect / Magnetic Sensors 10mA 5V/9V 3-Pin

Data Sheet
