Product Summary
The SN74HC04DR is a HEX inverter. The device containd six independent inverters. The SN74HC04DR performs the Boolean function Y = A in positive logic.
Parametrics
SN74HC04DR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: 80℃/W; (7)Storage temperature range, Tstg: –65 to 150℃.
Features
SN74HC04DR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20μA Max ICC; (4)Typical tpd = 8 ns; (5)±4mA Output Drive at 5 V; (6)Low Input Current of 1μA Max.

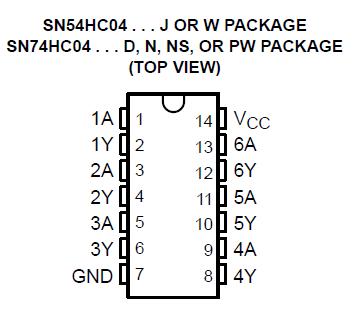

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC04DR |
Texas Instruments |
Inverters Hex |
Data Sheet |
|
|
||||||||||||
|
SN74HC04DRE4 |
Texas Instruments |
Inverters HEX INVERTERS |
Data Sheet |
|
|
||||||||||||
|
SN74HC04DRG4 |
Texas Instruments |
Inverters HEX INVERTERS |
Data Sheet |
|
|
||||||||||||
|
SN74HC04DRG3 |
Texas Instruments |
Inverters Hex Inverters |
Data Sheet |
|
|
||||||||||||
