RT9011-MGGJ6

low dropout regulator, TSOT-23-6, 300mA, 1.2V to 3.6V, Short Circuit Protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: RT9011-MGGJ6

Brand:: Richtek Technology Corporation - richtek | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jacker's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:RT9011-MGGJ6
US $0.10 - 1.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

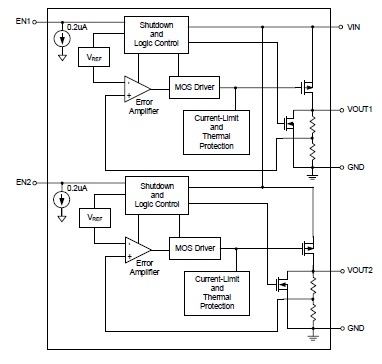

The RT9011-MGGJ6 is a dual channel, low noise, and low dropout regulator sourcing up to 300mA at each channel. The range of output voltage is from 1.2V to 3.6V by operating from 2.5V to 5.5V input. The RT9011-MGGJ6 offers 2% accuracy, extremely low dropout voltage(240mV @ 300mA), and extremely low ground current, only 27μA per LDO. The shutdown current is near zero current which is suitable for battery-power devices. Other features include current limiting, over temperature, output short circuit protection. The applications of the RT9011-MGGJ6 include: CDMA/GSM Cellular Handsets, Battery-Powered Equipment, Laptop, Palmtops, Notebook Computers, Hand-Held Instruments, PCMCIA Cards, Portable Information Appliances.

Parametrics

RT9011-MGGJ6 absolute maximum ratings: (1)Supply Input Voltage: 6V; (2)Other I/O Pin Voltages: 6V; (3)Power Dissipation, PD @ TA = 25℃ TSOT23-6: 0.455W; WDFN-6L 2×2: 0.606W; (4)Package Thermal Resistance TSOT23-6, θJA: 220℃/W; WDFN-6L 2x2, θJA: 165℃/W; (5)Lead Temperature (Soldering, 10 sec.): 260℃; (6)Storage Temperature Range: -65℃ to 150℃; (7)ESD Susceptibility HBM (Human Body Mode): 2kV; MM (Machine Mode): 200V.

Features

RT9011-MGGJ6 features: (1)Wide Operating Voltage Ranges : 2.5V to 5.5V; (2)Low-Noise for RF Application; (3)No Noise Bypass Capacitor Required; (4)Fast Response in Line/Load Transient; (5)TTL-Logic-Controlled Shutdown Input; (6)Low Temperature Coefficient; (7)Dual LDO Outputs (300mA/300mA); (8)Ultra-low Quiescent Current 27μA/LDO; (9)High Output Accuracy 2%; (10)Short Circuit Protection; (11)Thermal Shutdown Protection; (12)Current Limit Protection; (13)Short Circuit Thermal Folded Back Protection; (14)Tiny TSOT-23-6 and 8-Lead WDFN Package; (15)RoHS Compliant and 100% Lead (Pb)-Free.
