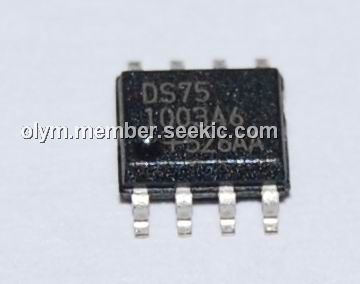

DS75S

2–wire thermal watchdog, 8-SOIC, 2.7V – 5.5V, 9–bit readout mode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: DS75S

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jacker's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:DS75S
US $0.10 - 1.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

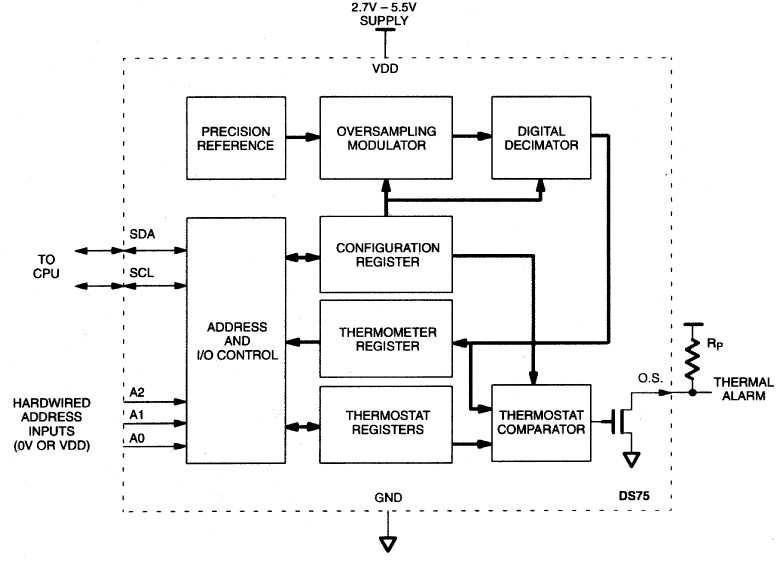

The DS75S is a 2–wire thermal watchdog. It provides 9–bit temperature readings which indicate the temperature of the device. Thermostat settings and temperature readings are all communicated to/from the DS75S over a simple 2–wire serial interface. No additional components are required; the device is truly a temperature–to–digital converter. The DS75S has three address bits that allow a user to multidrop up to eight sensors along the 2–wire bus, greatly simplifying the bussing of distributed temperature sensing networks. Applications for the DS75S include personal computers/servers, cellular telephones, office equipment, or any microprocessor–based thermally–sensitive system.

Parametrics

DS75S absolute maximum ratings: (1)Voltage on VDD, Relative to Ground: –0.3V to +7.0V; (2)Voltage on any other pin, Relative to Ground: –0.3V to (V DD + 0.3V); (3)Operating Temperature: –55℃ to +125℃; (4)Storage Temperature: –55℃ to +125℃; (5)Soldering Temperature: 260℃ for 10 seconds.

Features

DS75S features: (1)Temperature measurements require no external components; (2)Measures temperatures from –55℃ to +125℃. Fahrenheit equivalent is –67°F to +257°F; (3)Thermometer accuracy is ±2.0℃; (4)Thermometer resolution is configurable from nine (default) to 12 bits (0.5℃ to 0.0625℃ resolution); (5)9–bit readout mode features a max conversion time of 150 ms; (6)Thermostatic settings are user definable; (7)Data is read from/written via a 2–wire serial interface. (open drain I/O lines). 3–bit addressability; (8)Wide power supply range (2.7V – 5.5V).
