CD22M3494MQZ96

BiMOS-E Crosspoint Switch, 16 × 8 × 1, 44PLCC, 4V to 15V, 50mA, Very Low Crosstalk

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: CD22M3494MQZ96

Brand:: Intersil Corporation - Intersil | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jacker's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:CD22M3494MQZ96
US $0.10 - 1.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

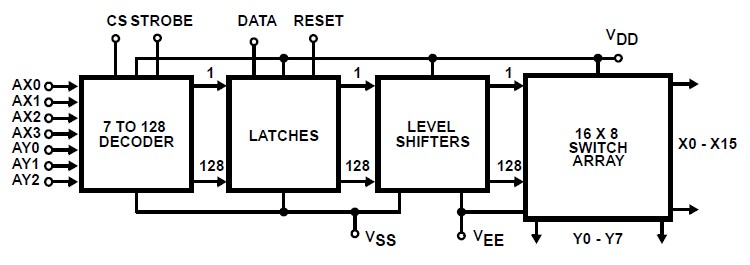

The CD22M3494MQZ96 is a 16 × 8 × 1 BiMOS-E Crosspoint Switch. Because of the switch structure, input signals may swing through the total supply voltage range, VDD to VEE. The CD22M3494MQZ96 may be addressed via the ADDRESS input to the 7 to 128 line decoder. The state of the addressed switch is established by the signal to the DATA input. The applications of the CD22M3494MQZ96 include: PBX Systems, Instrumentation, Analog and Digital Multiplexers, Video Switching Networks.

Parametrics

CD22M3494MQZ96 absolute maximum ratings: (1)DC Supply Voltage (VDD) Voltages Referenced to VEE: -0.5 to 16V; (2)DC Supply Voltage (VDD) Voltages Referenced to VSS: -0.5, 16V; (3)DC Input Diode Current, IIN For VI, Digital < VSS -0.5V or VI, Analog < VEE -0.5V or VI > VDD 0.5V: ±20mA; (4)DC Output Diode Current, IOK For VO, Digital < VSS -0.5V or VO, Analog < VEE -0.5V or VO > VDD 0.5V: ±20mA; (5)DC Transmission Gate Current: ±25mA; (6)Power Dissipation Per Package (Po)For TA = -40℃ to 85℃ (PDIP): 500mW; For TA = 60℃ to 85℃ Derate Linearly: 12mW/℃ to 200mW; For TA = -40℃ to 85℃ (PLCC): 600mW.

Features

CD22M3494MQZ96 features: (1)128 Analog Switches; (2)Low rON; (3)Guaranteed rON Matching; (4)Analog Signal Input Voltage Equal to the Supply Voltage; (5)Wide Operating Voltage: 4V to 15V; (6)Parallel Input Addressing; (7)High Latch Up Current: 50mA (Min); (8)Very Low Crosstalk; (9)Pin and Functionally Compatible with the Following Types: SGS M3494 and Mitel MT8816; (10)Pb-Free Plus Anneal Available (RoHS Compliant).
